T-Bolt Clamps-All in Stainless Steel


High quality stainless steel hose clamps well fitting our silicone hoses and give it full protect of it.
Normally,America type clamps,T-bot clamps,Germany type clamps more popular.

Technical Specification
Standard Material:100% stainless steel
America type clamps:band wide:0.5"(12.7mm)
T-bolt clamps:band wide:0.75"(19mm)
Germany type :band wide:0.5"(12.7mm)

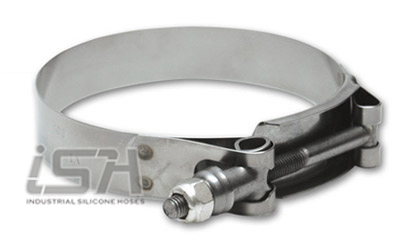

T-Bolt Clamps


T-Bolt Clamps
Part No Size (inch) Diameter Range(mm) Band Wide(mm)  Band Wide(inch)
THC1 2.00" 54mm-62mm 19 0.75"
THC2 2.25" 60mm-68mm 19 0.75"
THC3 2.50" 66mm-74mm 19 0.75"
THC4 2.75" 73mm-81mm 19 0.75"
THC5 3.00" 79mm-87mm 19 0.75"
THC6 3.25" 85mm-93mm 19 0.75"
THC7 3.50" 92mm-100mm 19 0.75"
THC8 3.75" 97mm-105mm 19 0.75"
THC9 4.00" 104mm-112mm 19 0.75"
THC10 4.50" 117mm-125mm 19 0.75"
THC11 5.00" 130mm-138mm 19 0.75"
